Underwater Die Plate with TiC Ceramic Inserts – Palletizer India Technology

Palletizer India’s underwater die plate ceramic inserts represent breakthrough technology in underwater pelletizing operations, featuring India’s pioneering TiC (Titanium Carbide) composite synthesis and advanced ceramic engineering. These precision-manufactured inserts deliver exceptional wear resistance, superior cutting performance, and extended operational life in demanding underwater polymer processing environments while eliminating critical import dependencies for petrochemical industries.

1. Material Composition

• Primary Material: TiC (Titanium Carbide) composite – first advanced synthesis in India
• Alternative Ceramics: Tungsten Carbide (W-C), NIKRO-128, NIKRODUR, and custom compositions
• Bonding Matrix: High-temperature brazing alloys for secure die plate integration
• Substrate Compatibility: Stainless steel, tool steel, and specialty alloy die plates
• Hardness Range: 68-72 HRC for maximum wear resistance
• Surface Treatment: Diamond-polished finish for optimal polymer flow

2. Dimensional Precision

• Insert Diameter: Precision range from 1mm to 25mm with ±0.001″ tolerance
• Length Specifications: Custom lengths from 5mm to 50mm based on die plate thickness
• Bore Accuracy: Concentricity within 0.0005″ for perfect polymer strand formation
• Installation Tolerance: Press-fit specifications ensuring permanent placement
• Surface Finish: Ra 0.025 for smooth polymer flow and reduced pressure drop
• Threading Options: Custom thread profiles for specialized mounting requirements

3. Advanced Features and Benefits

• Exceptional Wear Resistance: TiC ceramic composition provides 15x longer service life than steel inserts
• Superior Thermal Conductivity: Efficient heat dissipation prevents polymer degradation during processing
• Chemical Inertness: Complete resistance to polymer acids, additives, and processing chemicals
• Dimensional Stability: Zero thermal expansion ensures consistent pellet size throughout operation
• Smooth Polymer Flow: Diamond-polished bore surfaces eliminate flow restrictions and pressure buildup
• Corrosion Immunity: Ceramic construction withstands aggressive underwater environments indefinitely
• Easy Replacement: Modular design enables individual insert replacement without die plate removal

4. Industry Applications

• HDPE Pelletizing: High-density polyethylene underwater cutting with precision strand formation
• LDPE Processing: Low-density polyethylene pellet production with consistent quality control
• PP Manufacturing: Polypropylene underwater granulation with minimal polymer degradation
• Specialty Polymers: Custom processing of engineering plastics and high-performance materials
• Recycling Operations: Post-consumer plastic reprocessing with enhanced efficiency
• Compounding Applications: Masterbatch and filled polymer processing with superior performance
• Medical Grade Production: Pharmaceutical and food-grade polymer processing with ultra-clean cutting

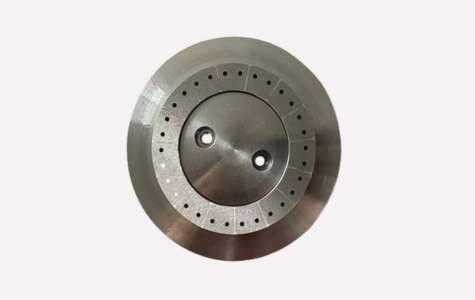

Round underwater pelletizer die plates with multiple concentric perforations for pellet production.

5. Competitive Advantages

• Revolutionary Indigenous Technology: First TiC ceramic insert manufacturing capability in India
• Dramatic Cost Reduction: 55% lower total cost of ownership compared to imported ceramic inserts
• Immediate Availability: Local manufacturing enables same-day emergency replacement supply
• Custom Engineering: Tailored insert designs for specific polymer types and processing conditions
• Technical Excellence: On-site installation support and performance optimization consultation
• Complete Independence: Zero reliance on foreign suppliers for critical pelletizing components

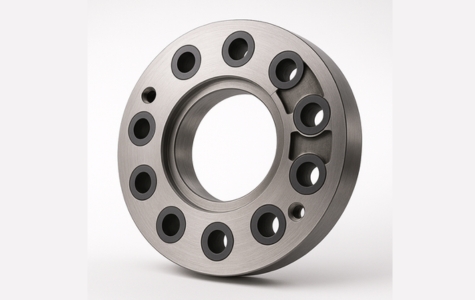

High-precision underwater pelletizer die plate with conical insert and mounting holes for ceramic inserts.

6. Quality Standards

• ISO 9001:2015 certified ceramic manufacturing with advanced quality control protocols
• Ceramic Composition Analysis: X-ray fluorescence verification of TiC content and purity
• Dimensional Metrology: Laser measurement systems ensuring precise bore tolerances
• Thermal Shock Testing: Validation under rapid temperature cycling conditions
• Wear Rate Analysis: Accelerated testing under simulated underwater pelletizing conditions
• Installation Verification: Press-fit force testing and retention strength validation
• Performance Certification: Actual pelletizing trials with quality documentation

Components of an underwater pelletizer die plate assembly showing knives, knife holder, die plate, and tapped driving bush.
